Apply to slitting aluminum foil tape/glass paper tape

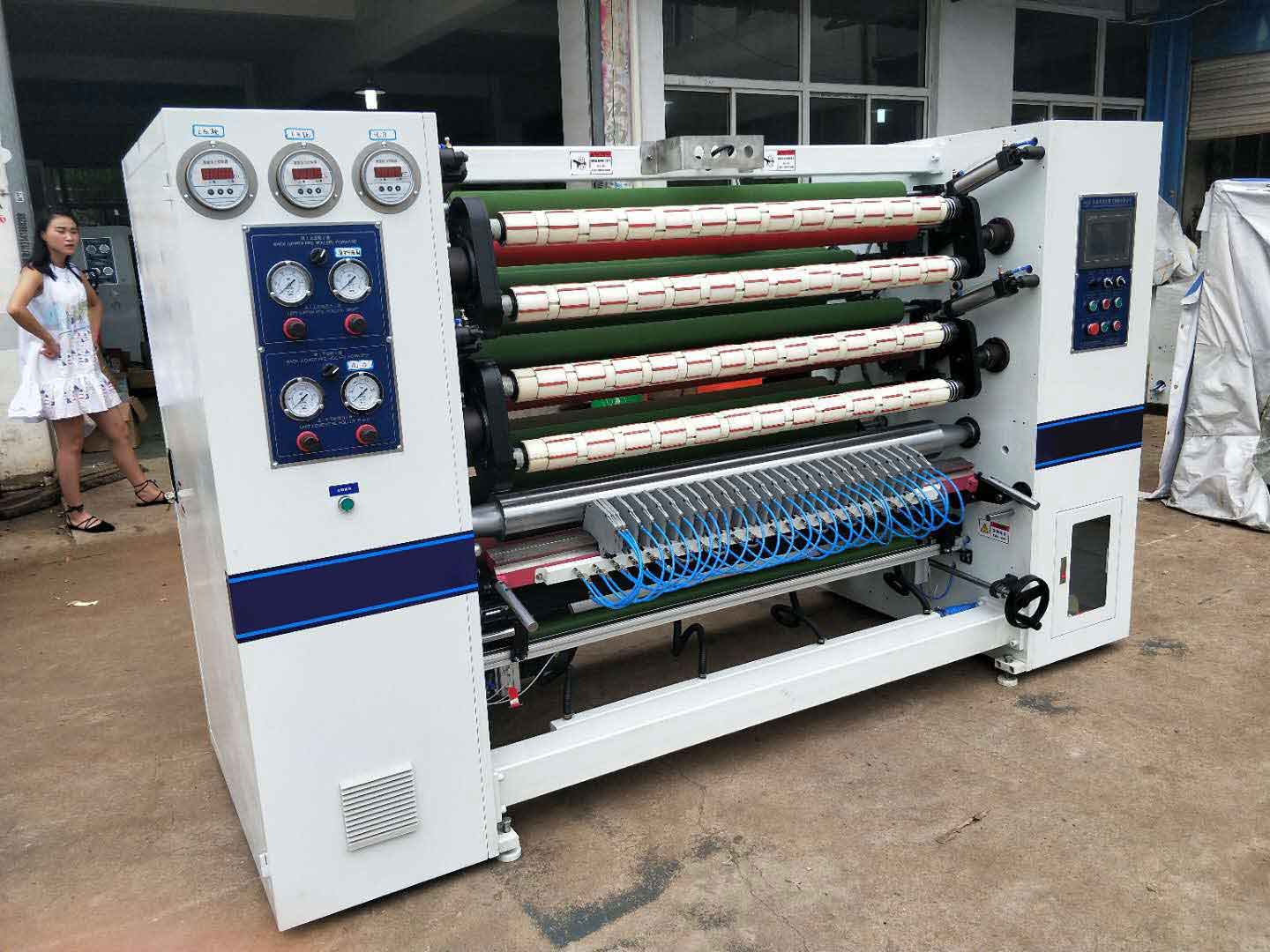

Aluminum foil tape slitting machine/foil tape slitter and rewinder/tape slitting machinery features:
1. Automatic tension control for unwinding and rewinding section.
2. Four shafts exchange rewinding system
3. Plc and touch screen operation system, so trouble will be showed on touch screen, it is more easy for after-sell service.
Optional parts :
1. Tape jumbo roll loading device
2. Air blade cutting system.
3. Automatic label posting device
Main technical parameters
| Machine width | 1.0M 1.3M 1.6M |
| Max unwinding diameter | 800mm |
| Min slitting width | 15mm |
| Max rewinding diameter | (3” shaft) 4 shafts exchange: 200mm |
| Machine speed | 0-200M/min |
| Razor | 0.2x22x60mm air blade: Taiwan brand |
| Main motor | 5HP |
